The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging to compatibility with a wide range of chart options, Elite FS gives you all the tools you need to find and catch more fish.
Find More Fish with Proven Lowrance Sonar

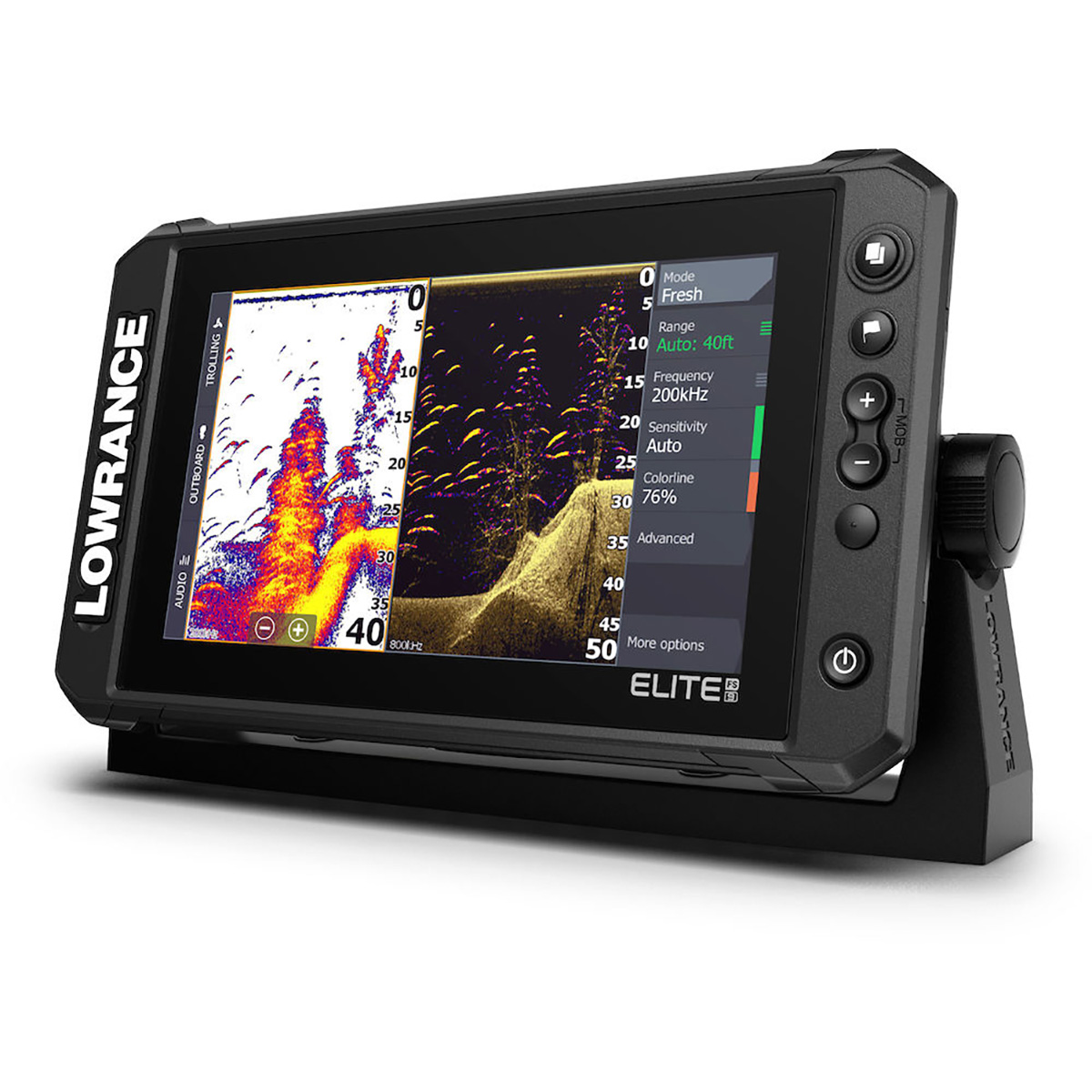

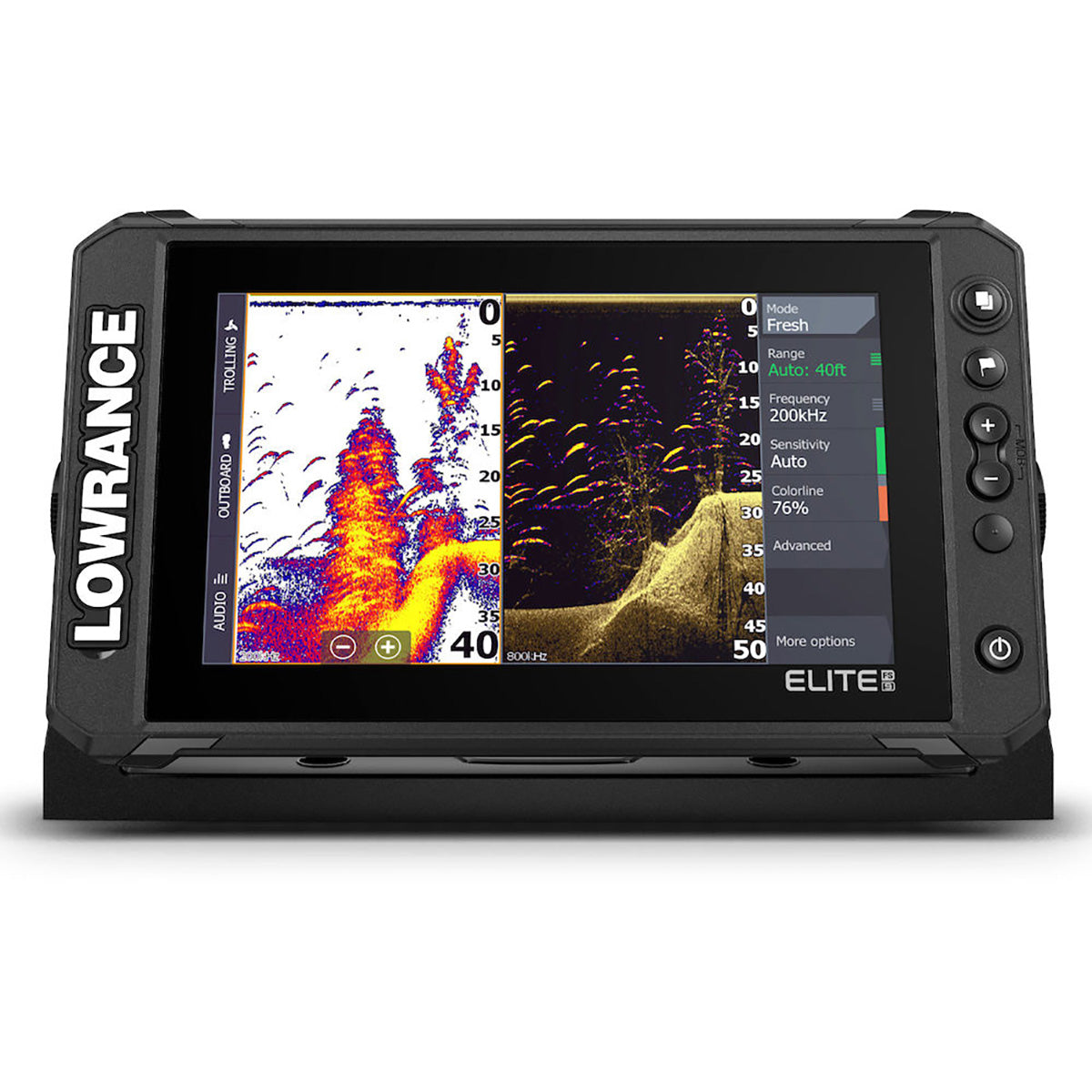

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

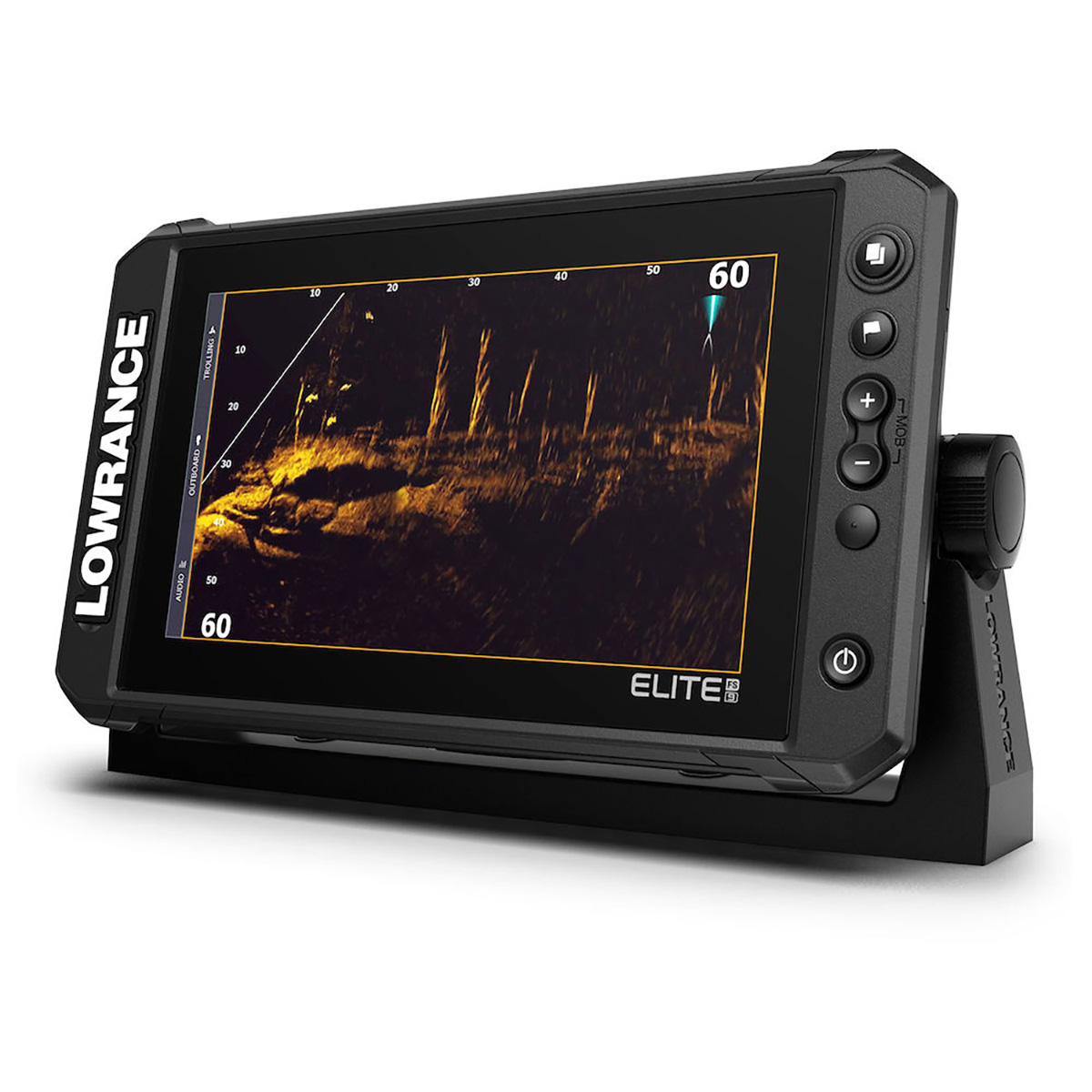

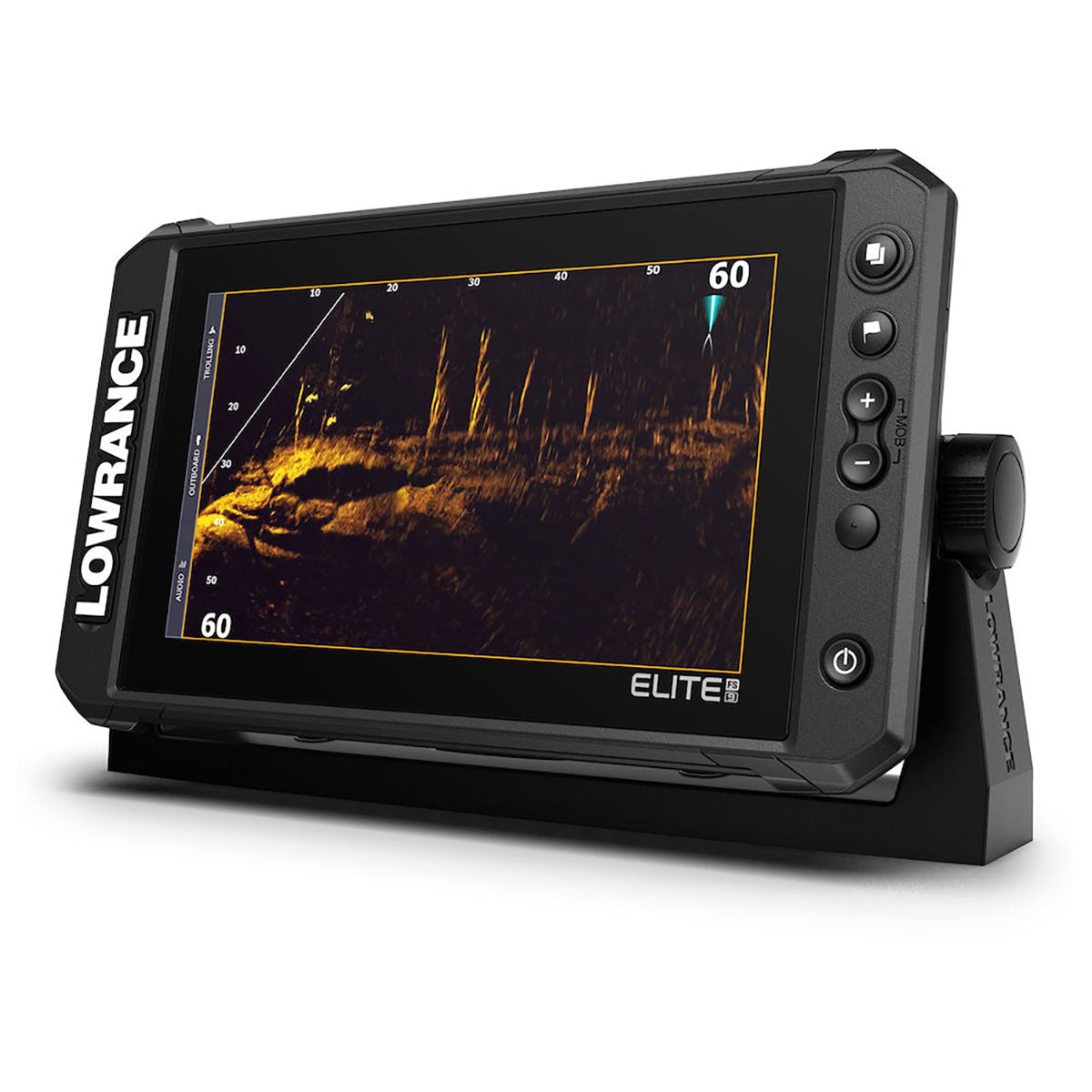

Target Fish Live with New ActiveTarget Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

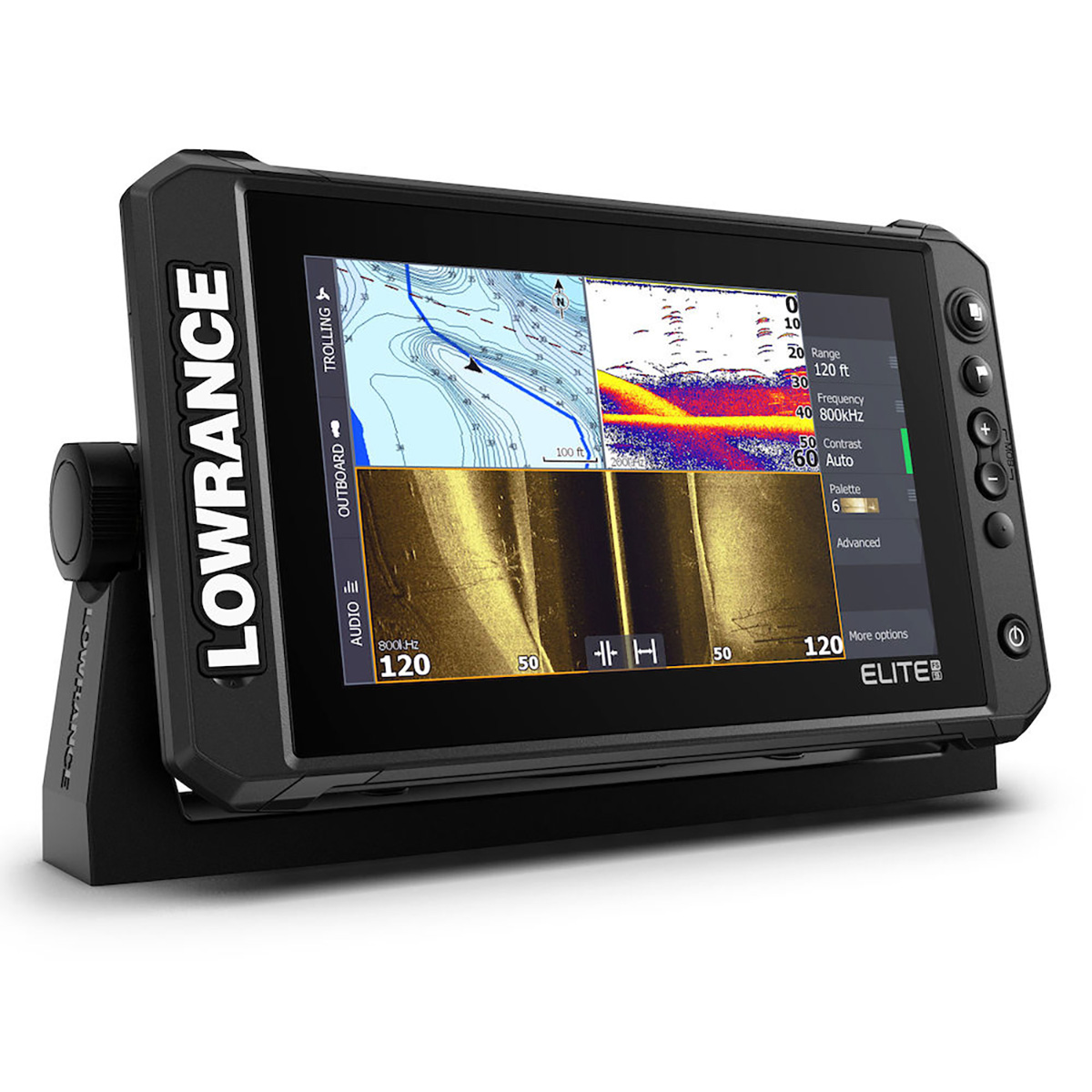

Multitude of Chart Options
Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics and more.
ActiveTarget Live Sonar ready
Active Imaging 3-in-1 ready
FishReveal
Includes worldwide basemap, plus a wide range of chart options, including C-MAP, Navionics® and more
C-MAP® Easy Routing, Navionics® Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000 and Ethernet connectivity
Full touchscreen control of Power Pole anchors and Ghost Trolling Motor
Connectivity
NMEA 0183 Sentences supported None
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic
Ethernet 1 x 100Mbit
NMEA 0183 None
NMEA 2000 1x Micro-C
PC Connectivity None
Video None
WiFi Internal 802.11b/g/n
Display
Backlight Color Pure White LED
Resolution 800×480
Screen Brightness >1200 nits
Size and Type 9.00″ (228mm) WVGA color TFT LCD
Viewing Angles 50° top60°bottom70° left/right
Electrical
Power Consumption, max. 2.0A @ 13VDC with backlight on full
Power Consumption, min. 2.0A @ 13VDC with backlight on full
Power Consumption, typical 2.0A @ 13VDC with backlight on full
Recommended Fuse Rating 3A
Supply Voltage 12v DC (10.8-17VDC)
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Environment
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock and Vibration 100,000 cycles of 20 G
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Waterproof rating IPX7 with card door closed
GPS
Correction DGPSWAASMSASEGNOSGLONASS
GPS Receiver Channels 16
Position Accuracy 20m RMS
Time to First Fix 30s
Update rate 10 Hz
MFD
AIS AIS Chart overlay. Target vessel details.
Autopilot Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Cartography included C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)
Cartography supported C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Digital Switching None
External Storage 1 micro SD card up to 32GB
GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Internal Storage None
Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
Radar (inc. compatibility) 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Sonar (inc. compatibility) Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Weather SiriusXM via WM-4 (USA only)
Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Compass Safe Distance – Metric, imperial 12″ (300mm)
Physical
Mounting Type Gimbal Bracket or Dash Flush Mount
Weight 2.7 lbs (1.2 kg)
Other
Warranty Period 2 Year + 3 additional years of upgrade options totaling 5 years
Interface Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
