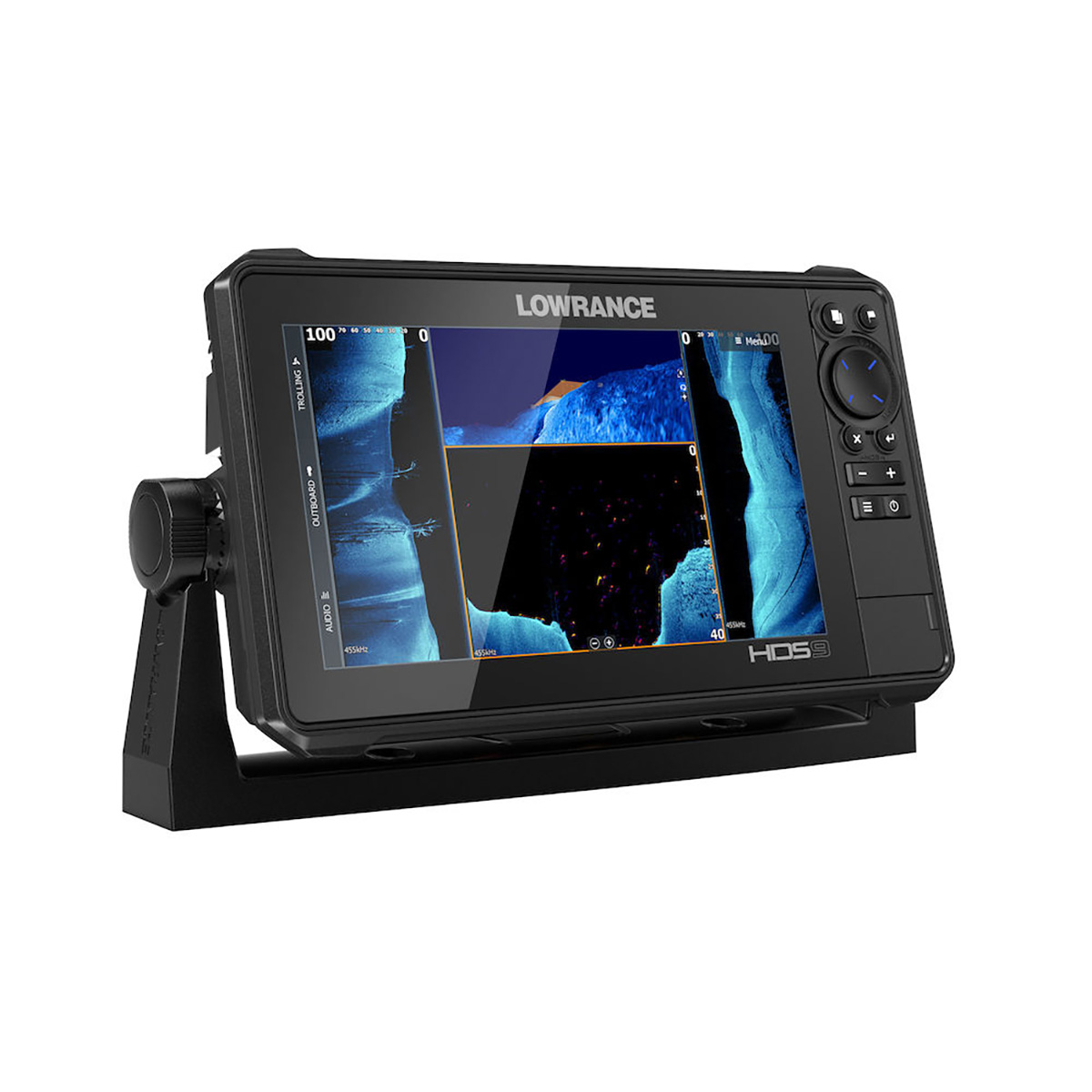

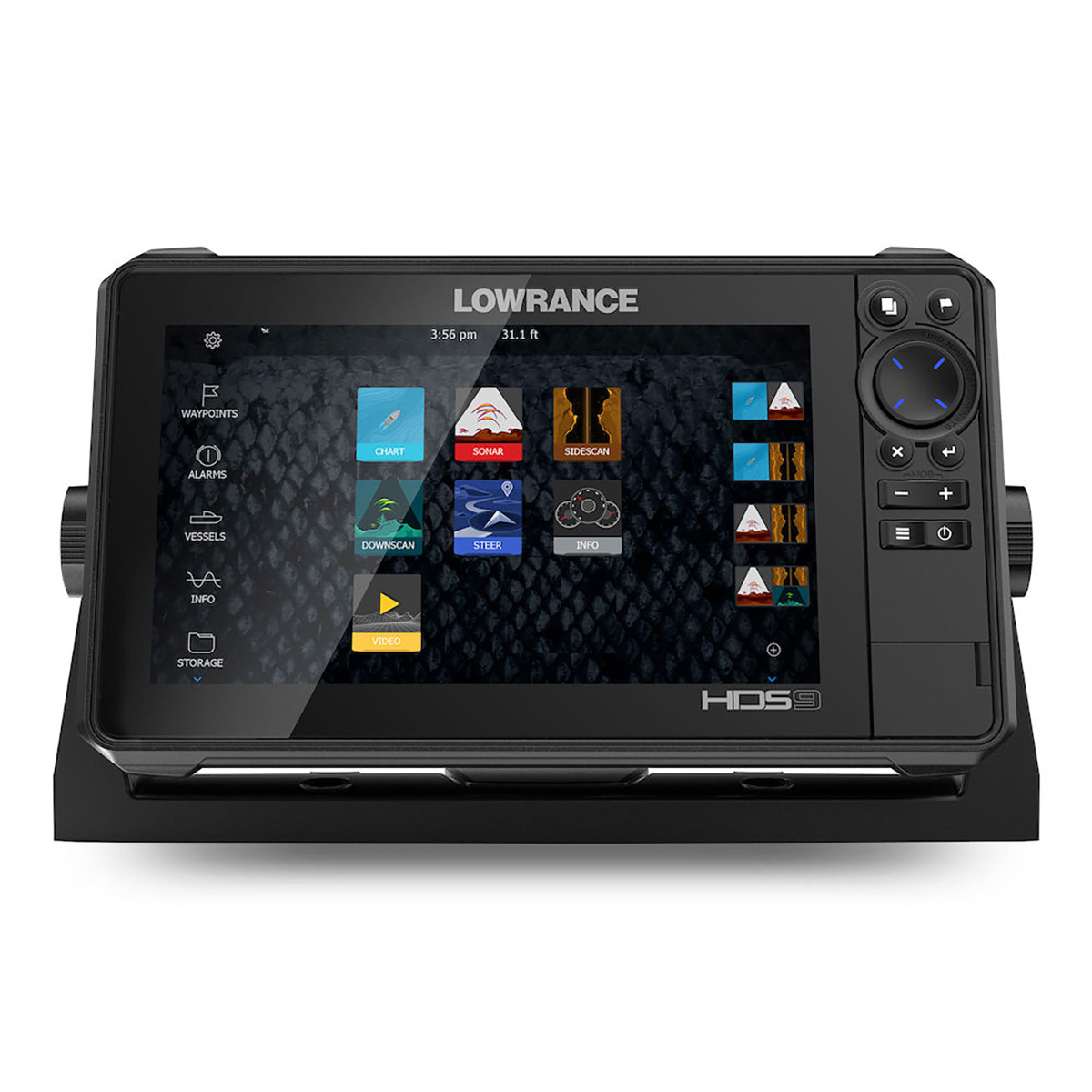

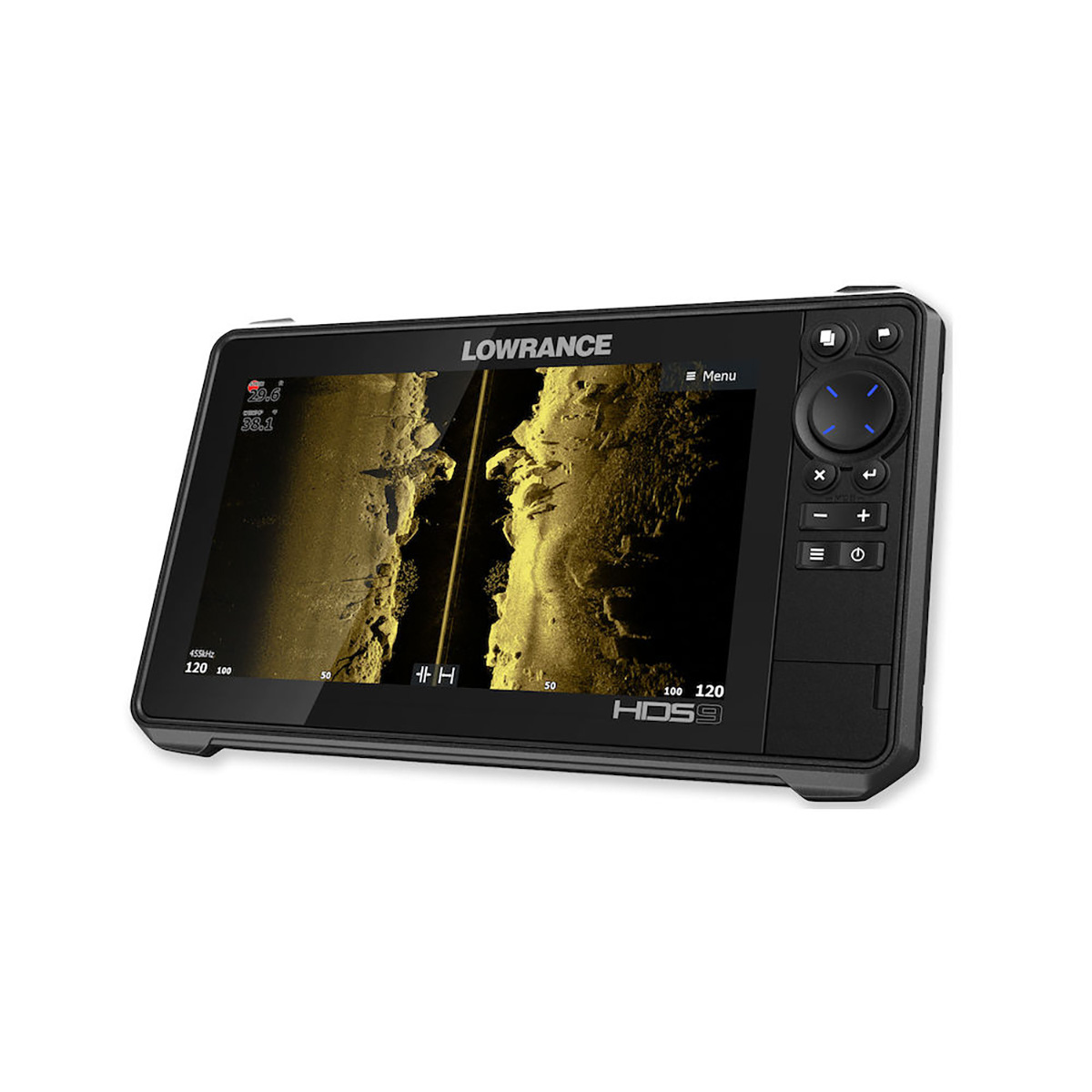

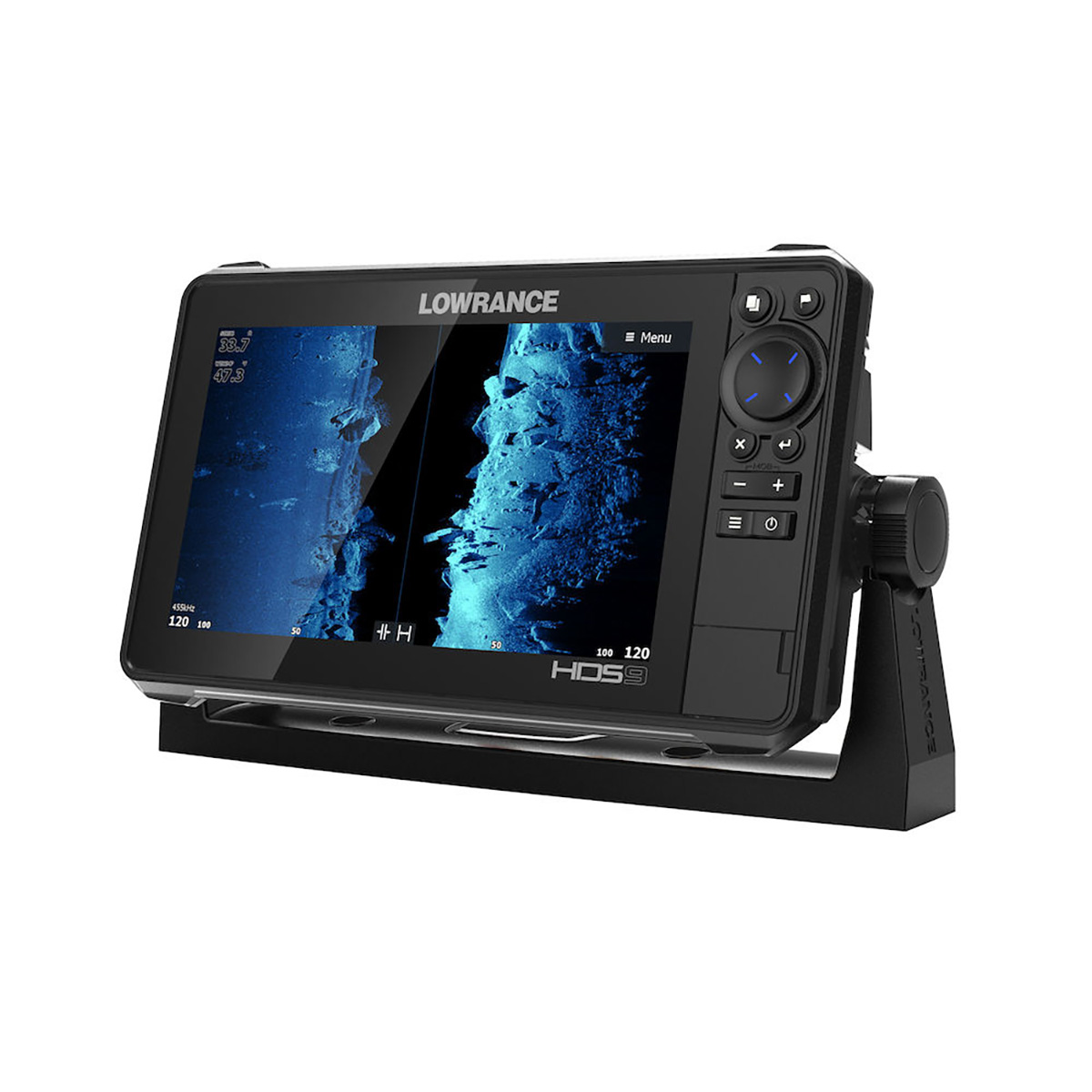

GPS Sonar Lowrance HDS-9 LIVE c/ Transdutor Active Imaging

Fora de estoque

Desconto de 10% para pagamentos à vista!

  • Produtos originais com garantia
  • Distribuidor autorizado
  • Pagamento seguro
Até 10x sem Juros

Simulação de frete

Year after year, more fishing tour pros use HDS than all other fishfinder brands combined. HDS LIVE 9 is will carry on that tradition behind premium performance and support for the best collection of innovative sonar features available – from new Active Imaging™ and StructureScan® 3D with Active Imaging to FishReveal™ and LiveSight™ real-time sonar – you will experience a new level of fishfinding performance with HDS LIVE 9.



Navigating to your favorite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into an HDS display – including preloaded high-detail US, Australia, New Zealand or worldwide basemap, C-MAP® Easy Routing, Navionics® Autorouting* capability and C-MAP Genesis Live mapping.



HDS LIVE also simplifies your time on the water with onscreen text messages and call notifications, and an intuitive user interface that makes HDS LIVE even easier to use.



Featuring a high-resolution 9-inch SolarMAX™ HD screen, HDS LIVE 9 provides industry-leading images that are always easy to see – from any angle, in direct sunlight or even through polarized sunglasses.



HDS LIVE delivers powerful fishfinding sonar with a high-performance, dual-core processor that produces smooth, lag-free operation, responsive touchscreen performance, and faster chart redraws and sonar updates.



*Navionics subscription required. See Navionics.com for more details



Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*

Active Imaging™ 2-in-1 (Side/Down) sonar ready*

StructureScan® 3D compatible*

LiveSight™ real-time sonar compatible*

Smartphone notifications

High-performance dual-core processor

C-MAP® Genesis Live onscreen mapping

FishReveal™ Smart Target View

High-resolution 9-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglasses

Preloaded high-detail US, Australia, New Zealand or worldwide basemap

C-MAP Easy Routing, Navionics® Autorouting capability

Dual-Channel CHIRP – dual sonar-range coverage from the same transducer

Live Network Sonar – cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers

SiriusXM® Marine Weather and Audio compatible

Wireless and Bluetooth® connectivity

Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas

Enhanced Surface Clarity lets you see more fish targets near the surface

Quick Access Control Bar provides one–touch access to system controls

Touchscreen control of MotorGuide® Xi5 Trolling Motor, Power-Pole® Anchors and Lowrance Outboard Pilot

Radar and SonicHub®2 audio server connectivity

NMEA 2000® engine support

Optional mapping upgrades include C-MAP, Navionics® and more



*Transducer sold separately.



Approvals



Compliance FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM



Autopilot



Manouevres / Turn Patterns CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S

Steering Modes CourseHeadingWaypointPower Steer



Connectivity



NMEA 0183 Sentences supported TX / RX – GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX – NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX – SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX – CompassReceive HDG HDT HDMTransmit HDGTX / RX – WindReceive MWV MWDTransmit MWV MWDTX / RX – AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000.

Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic

Ethernet 2 x 100 Mbit, 6 max MFD’s on a network

NMEA 0183 1x RS422 port Baud rates: 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200

NMEA 2000 1x Micro-C

PC Connectivity None

Video Output: NoInput: Composite video RCA – singlechannel via optional adaptor

WiFi Internal 802.11b/g/n and Compatible with WiFi-1 Module



Display



Backlight Color Pure White LED

Resolution 1280 x 720

Screen Brightness >1200 Nits

Size and Type 9″ (228mm)SolarMAX HD (TM) IPStechnologyMulti-touch, P-CAP

Viewing Angles 80° top/bottom, 80° left/right



Electrical



Power Consumption, max. 2.9A @ 13VDC with Full Backlight, Sonar on

Power Consumption, min. 2.0A @ 13VDC withwith Full Backlight, Sonar on

Power Consumption, typical 2.0A @ 13VDC withwith Full Backlight, Sonar on

Recommended Fuse Rating 5A

Supply Voltage 12 v DC (10.8-17VDC)

Humidity 60°C, 95% relative humidity (RH) for 18 hours



Environment



Operating Temperature Range 5°F to 131°F (-15°C to 55°C )

Shock and Vibration 100,000 cycles of 20 G

Storage Temperature Range 4°F to 140°F (-20°C to 60°C )

Waterproof rating IPX7 with card door closed



GPS



Correction DGPS, WAAS

GPS Receiver Channels 16

Position Accuracy 20m RMS

Time to First Fix 30s

Update rate 10 Hz



MFD



AIS AIS Chart and Radar overlay. Target vessel details.

Autopilot Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway

Cartography included C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models)

Cartography supported C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners

Digital Switching CzoneNaviop

External Storage 2 micro SD cards up to 32GB

GPS 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS

Internal Storage 8.0 GB Internal

Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products

Radar (inc. compatibility) 4G (Broadband)3G (Broadband)Halo24 (Pulse Compression Dome Radar)Halo 3’/4’/6′ (Open Array Pulse Compression Radar)

Sonar (inc. compatibility) Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D

Weather SiriusXM via WM-3 (USA only)

Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail

Compass Safe Distance – Metric, imperial 12″ (300mm)



Physical



Dimensions (W x H x D) 11.02in (280.0mm) x 6.56in (166.7mm) x 3.05in (77.7mm)

Mounting Type Gimbal BracketFront Dash Flush MountRear Dash Flush Mount

Weight 4.14lb (2.00kg)



Other



Warranty Period 2 Year + 3 additional years ofupgrade optionsTotaling 5 years

Interface Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light

Peso 5,700 kg
Dimensões 24,0 × 33,0 × 23,0 cm
