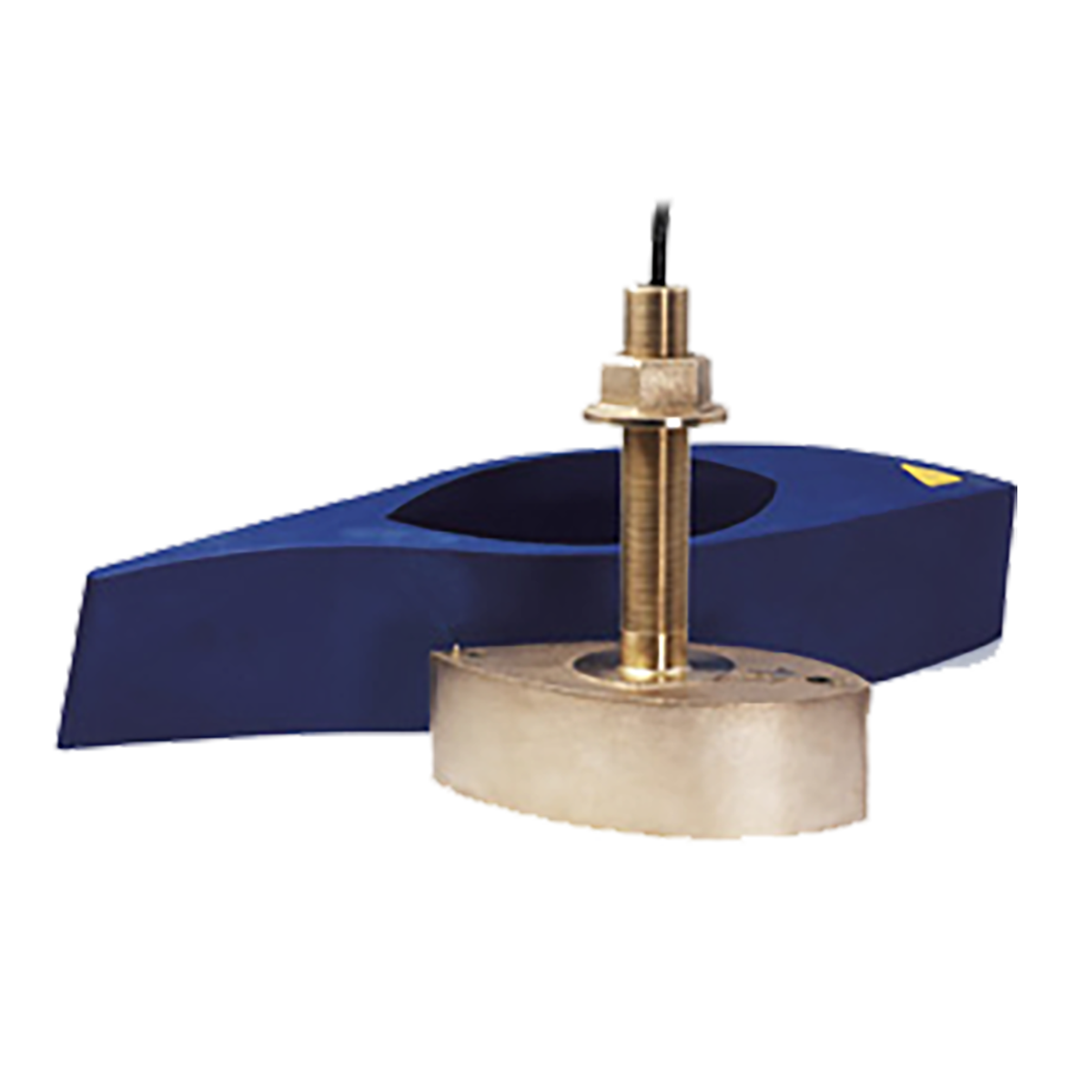

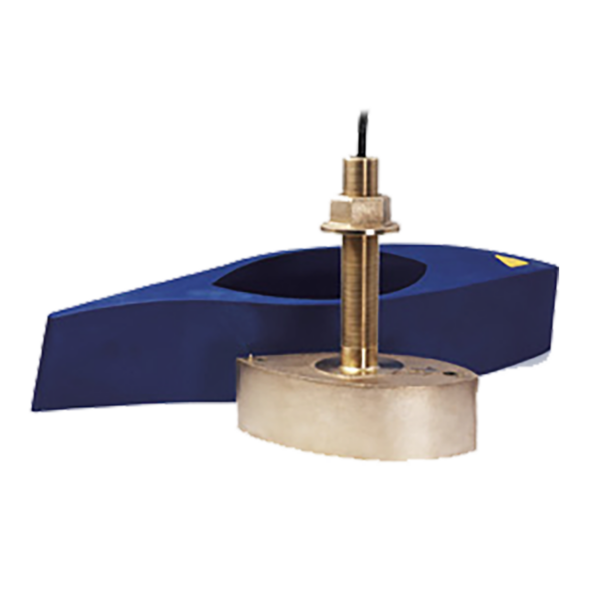

SS260 Depth/Temperature Transducer
The combination of power and sensitivity has made this the high-performing transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz, the narrow, 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection, and the wide, 19° beam yields broad coverage under the boat.
SS260 features a stainless steel housing which is compatible with all hull materials. Installed with the included, custom-fitting, high-performance fairing, the SS260 gives excellent results at speeds up to 30 knots (34 MPH).
Features
Depth and fast-response water-temperature sensor
1 kW Dual-frequency element
50 kHz with a 19° beamwidth for depth performance to 762 m (2,500′)
200 kHz with a 6° beamwidth for depth performance to 294 m (1,000′)
Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
Stainless steel housing with high-performance fairing for optimal performance speed
Also available in transom (TM260) and in-hull (M260).
Specifications
Weight: 7.3 kg (16 lb.)
Recommended Boat Length: Over 9 m (30′)
Hull Material: Compatible with all hull materials
Hull Deadrise: Up to 20° with fairing
Acoustic Window: Urethane
Hole Diameter:
Fiberglass or wood hull—33 mm or 1-5/16″
Metal hull—35 mm or 1-3/8″
Includes: High-performance fairing and mounting hardware
Transducer Specifications
Frequency 50/200 kHz
Power Rating 1kW
Speed Sensor No
Temperature Sensor Yes
Mounting Style Stainless Steel Thru-Hull
Beamwidth 50 kHz—19°, 200 kHz—6°
Q at 50 kHz—8 Q at 200 kHz—8
