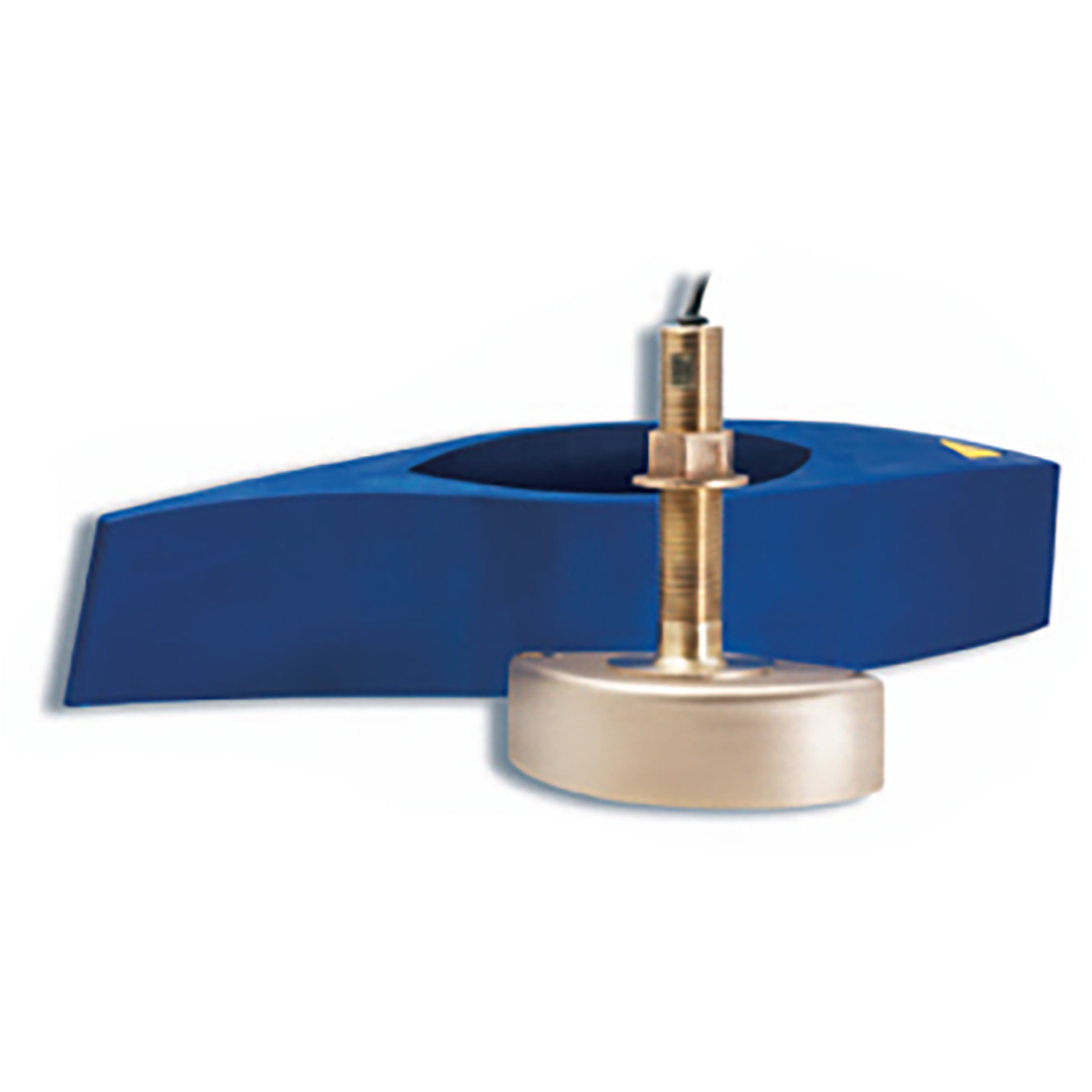

The B258 is an excellent, economical, 1 kW, dual-frequency transducer for anglers. Its unique four ceramic-element construction produces an elliptical beam that covers a wider area and produces excellent target resolution. The combination of 50 and 200 kHz make it a great option for both shallow and deep-water use. The included high-performance fairing gives excellent results at speeds up to 30 knots (34 MPH).
Features
Depth and fast-response water-temperature sensor
1 kW
50/200 kHz producing elliptical patterns for wider coverage
50 kHz with a 15° x 21° beamwidth (Max 671m)
200 kHz with a 3° x 5° beamwidth (Max 305m)
Bronze-stem housing with high-performance fairing for optimal performance at speed
Greater surface area resulting in better sensitivity
Specifications
Weight: 3.6 kg (7.9 lb.)
Recommended Boat Length: More than 9 m (30′)
Hull Material: Fiberglass or wood
Hull Deadrise: Up to 26° with fairing
Acoustic Window: Epoxy/urethane
Hole Diameter: 30 mm or 1-3/16″
Includes: High-performance fairing and mounting hardware
Frequency 50/200 kHz
Power Rating 1kW
Speed Sensor No
Temperature Sensor Yes
Mounting Style Bronze Thru-Hull
Elements 4
Beamwidth @ -3dB 50 kHz—15° x 21°, 200 kHz—3° x 5°
