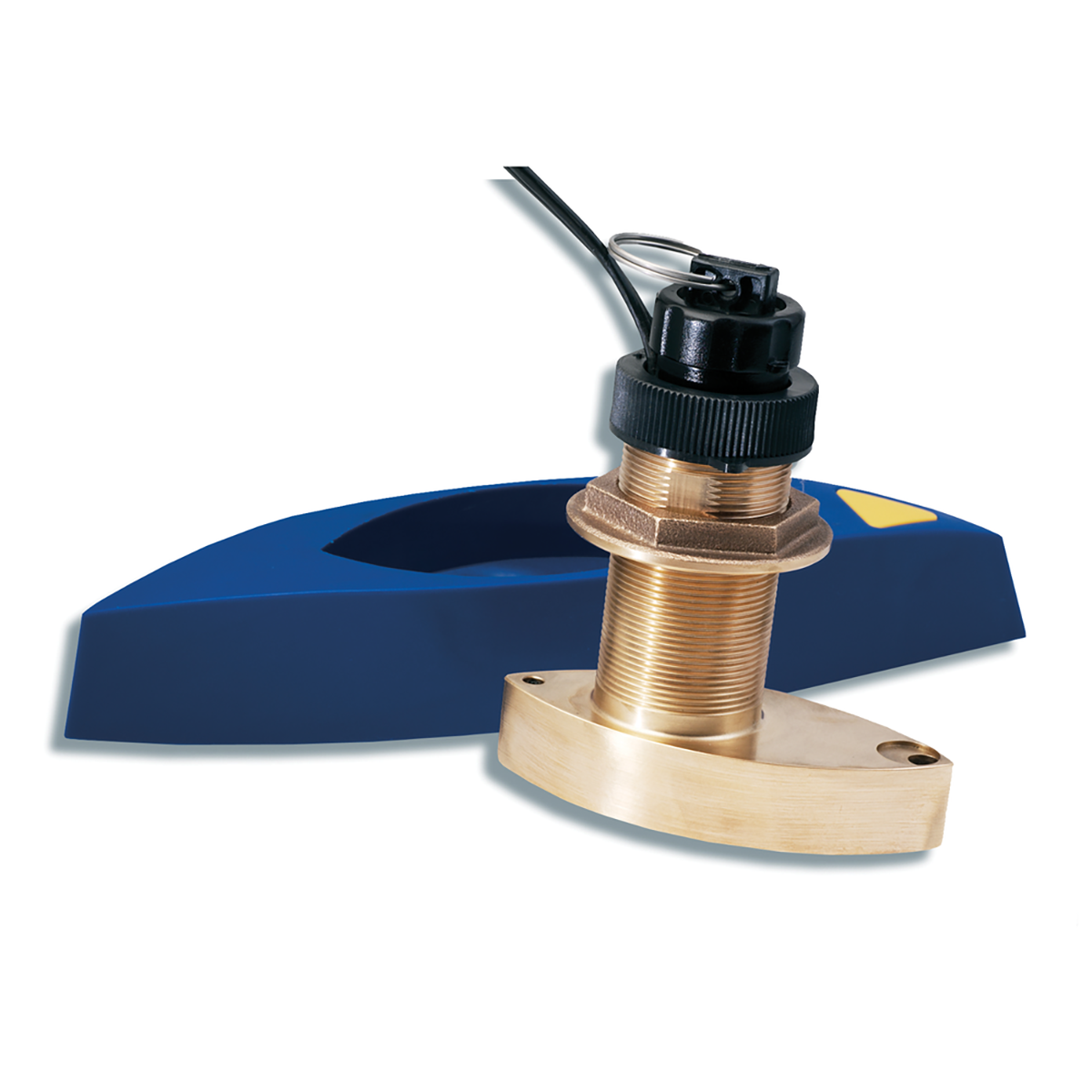

The B744V is a TRIDUCER Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz.
Features
Depth, speed, and temperature in one housing
600 W Dual-frequency element
50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200′)
200 kHz with a 12° beamwidth for depth performance to 206 m (700′)
Bronze housing with a high-performance fairing for optimal bottom tracking at higher speeds
Self-closing water valve reduces water flow into the hull when paddlewheel insert is removed
Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions
Specifications
Weight 2.5 kg (5.5 lb.)
Recommended Boat Length Up to 9 m (30′)
Hull Material Fiberglass or wood
Hull Deadrise Up to 24° with fairing
Acoustic Window Urethane
Hole Diameter 51 mm or 2″
Speed Range 1 to 45 knots (1 to 52 MPH)
Includes High-performance fairing and mounting hardware
